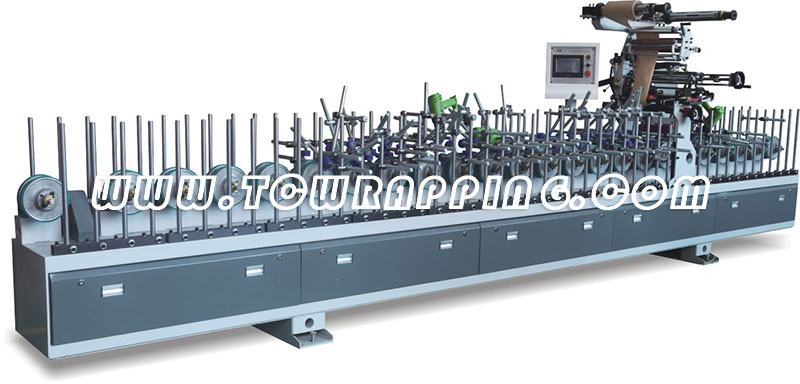

TCB-PUR(300/450/600)Multifunction PUR Profile wrapping machine(Coil film)

TCB-PUR(300/450/600)Multifunction PUR Profile wrapping machine(Coil film)


Technology parameter


Max film covering width300mm

Max process thickness

90mm
Min process length600mm
Speed of material delvery0-50m/min
Max diameter of roll cover material400mm
Sticking glue power5.5kw
Motivity power1.5kw
Heat power6kw
Machine weight≈1500kg

Structure size

6000×600×2000mm
Plastic buckets Specifications20kg Standard barrel(5gallons)
The inner diameter of the plastic buckets280mm(286mm Customize)
Temperature rangeNormal temperature--180℃
Working Pressure0.4~0.8MPa
Platen strokeMax:500mm
Max motor speed

60rpm

Max out of plastic pressure50kg/cm2
Control systemPLC+Touch screen
Insulation functionYes

Over-temperature alarm

Yes
The low plastic bits alarm

Yes


Product principle


PUR universal wrapping machine is suitable for sticking leather,PVC,veneer,cpl,etc,veneer etc on decorative strip(wpc strips),aluminum profiles,and is mainly for different angles,ARC,roughness and the edges to get excellent performance.what's more,PUR glue has the features of anti-aning,anti-UV which makes it to be the top choice for outdoor.
