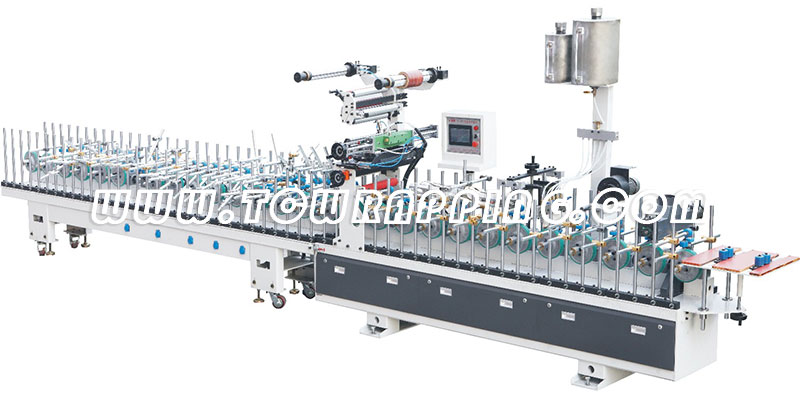

TCB-PUR(300/450/600)Multifunction PUR Profile wrapping machine(Moveable Bracket)

TCB-PUR(300/450/600)Multifunction PUR Profile wrapping machine(Moveable Bracket)


Technology parameter


Max film covering width

300mm
Max process thickness90mm
Min process length600mm

Speed of material delvery.

0-50m/min
Max diameter of roll cover material400mm(Rolling veneer)
Sticking glue power5.5kw
Motivity power1.5kw
Heat power6kw
Machine weight≈1500kg
Structure size

6000×600×2000mm

Plastic buckets Specifications20kg Standard barrel(5gallons)
The inner diameter of the plastic buckets280mm(286mm Customize)
Temperature rangeNormal temperature--180℃

Working Pressure

0.4~0.8MPa
Platen stroke

Max:500mm

Max motor speed

60rpm
Max out of plastic pressure50kg/cm2
Control systemPLC+Touch screen
Insulation functionYes
Over-temperature alarmYes
The low plastic bits alarm

Yes


Product principle


PUR universal wrapping machine is suitable for sticking leather,PVC,veneer,cpl,etc,veneer etc on decorative strip(wpc strips),aluminum profiles,and is mainly for different angles,ARC,roughness and the edges to get excellent performance.what's more,PUR glue has the features of anti-aning,anti-UV which makes it to be the top choice for outdoor.

 ?????? ??? ???:
